「沈陽快速門」硬質快速門防砸防撞裝置


"Ningbo Fast Gate" Hard Fast Gate Anti-smash and Anti-collision Device

渦輪硬質快速門經濟硬質快速門具備保溫，隔音，隔塵等多項功能。廣泛用于地下泊車場，工業車間，冷庫，醫藥車間，電子，食品加工，紡織，汽車裝配，機密機械，物流等行業。


Turbine Hard Fast Door Economic Hard Fast Door has many functions such as thermal insulation, sound insulation, dust insulation and so on. Widely used in underground parking yards, industrial workshops, refrigerators, pharmaceutical workshops, electronics, food processing, textile, automobile assembly, confidential machinery, logistics and other industries.

標配及外加配置：鋁合金快速門接納按鈕手控，雷達控制，地磁控制，藍牙射頻，無線遙控，拉繩開關，遠程中央控制等多種控制方式，充分滿足用戶要求。


Standard and additional configuration: Aluminum alloy fast door acceptance button manual control, radar control, geomagnetic control, Bluetooth radio frequency, wireless remote control, rope switch, remote central control and other control methods, fully meet user requirements.


鋁合金渦輪模式及優點：因為接納螺旋導軌，HFG系列快速門運行速度快，無噪音，且無磨損。


Aluminum alloy turbine mode and advantages: because of the acceptance of screw guides, HFG series fast doors run fast, noise-free, and wear-free.


雙螺旋導軌是標準設計規格，同時也是開啟和關閉速度非常快的解決方案。


The double helix guideway is a standard design specification, and it is also a solution with very fast opening and closing speed.


如果上房空間不足，可以采取渦輪，橢圓，平提，直提等不同的提升方式。


If the room space is insufficient, different lifting modes can be adopted, such as turbine, ellipse, flat lifting and direct lifting.

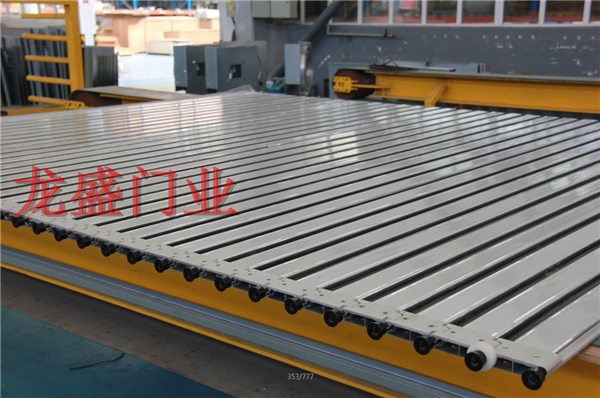

鋁合金門簾厚度40mm，外觀經由陽極氧化加有機著色處理，抗拉強度超過230B/MPA符合GB/T5237.1-5-2000標準顏色為巴士德灰，還有鋁合金沙白、中國紅兩種可選顏色；


The aluminium alloy door curtain is 1-200 mm thick and its appearance is treated by anodic oxidation and organic coloring. The tensile strength of the curtain exceeds 230B/MPA, which meets the GB/T5237.1-5-2000 standard. The color of the curtain is Bastian grey. There are also two optional colors of aluminum alloy sand white and Chinese red.


通過軟連接膠條連接鋁合門簾片站后，軟連接部份折疊壽命達百萬次以上；


The folding life of the flexible connection part is more than one million times after the flexible connection rubber strip is connected to the aluminium door curtain station.


角鏈承重方式設計使門簾接合處不受力，門簾片不變型，長時間后還可維持平整性；


The angle chain load-bearing design makes the joint of the door curtain not force, the door curtain sheet does not change shape, and can maintain smoothness after a long time.


門體運行時是通過聚安脂材料的導向輪在鋁合金軌道內滑動，非常高速運行時也不會發生任何磨擦和燥音。


When the door body runs, it slides in the track of aluminium alloy through the guide wheel of polyurethane material, and there will be no friction and dry noise when it runs at very high speed.


「沈陽快速門」硬質快速門防砸防撞裝置


"Ningbo Fast Gate" Hard Fast Gate Anti-smash and Anti-collision Device

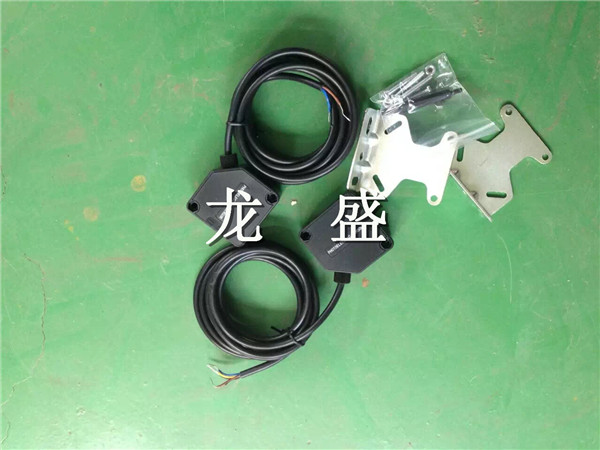

紅外線安全保護電眼：門框兩側設有對射電眼，快速門下方有物體，使門維持開啟狀態；當門體下降時下方有物體通過，門體會開啟到非常開位，待下方無障礙物時再延時下降。


Infrared Safety Protection Eye: There are radio eyes on both sides of the door frame, and there are objects under the fast door to keep the door open; when the door body drops, there are objects passing below, the door body will open to a very open position, and then delay the descent when there are no obstacles below.

底部安全保護邊：當門體在下降時，因為物體處在紅外線安全保護的盲區時，門體壓在下方障礙物時，門體訊速反彈在非常開門，有效的保戶下方物體或行人避免事故。


Bottom Safety Protection Edge: When the door body is falling, because the object is in the blind area of infrared safety protection, when the door body is pressed against the obstacle below, the speed of the door body rebounds in a very open door, effectively protecting objects or pedestrians below the door to avoid accidents.


光幕保護系統：特有的非常有效的一種安全保護方式，在重直地方的方向安裝一給光柵墻，它通常是由18組光頭構成，接納485通訊協議，跟據門簾體的時實高候來計算門簾位置并給于過往行人或物體保護的一種有效措施。


Light curtain protection system: a unique and effective way of security protection, which installs a grating wall in the direction of the straight place. It is usually composed of 18 groups of light heads, accepts 485 communication protocol, calculates the position of the curtain according to the real time of the curtain body, and provides an effective measure for the protection of passers-by or objects.
